40X-1000X LED Lab Compound Microscope

$158.00
PayPal Acceptance Mark

40X-1000X LED Lab Compound Microscope with 3D Two-Layer Mechanical Stage

Our new binocular compound microscope is designed for teaching demonstrations, clinical examinations and laboratory applications. It is a perfect microscope for professionals, teachers and students including those in medical school or with a major in biology. It comes with a Siedentopf binocular head, double layer mechanical stage with course & fine focusing, and an LED illumination system. There are four magnification settings: 40X, 100X, 400X, 1000X. This microscope is an ideal instrument for bacterial, biological, and pharmaceutical researches.

Features:

30 degree inclined 360 degree swiveling Siedentopf binocular head
High quality precise optical glass elements
Easy to attach a microscope camera or digital imager
Four magnification settings, 40X, 100X, 400X, 1000X.
Four Achromatic objectives, DIN 4X, 10X, 40X(S), 100X(S,Oil)
Two pairs of widefield eyepieces: WF10X (WF16X optional)
Adjustable interpupillary distance
Adjustable ocular diopter
Variable intensity illumination
Coaxial coarse and fine focus adjustment
Focusing knobs are on both sides
Stage upward moving lock protects objectives and slides
Stain-resistant double layer mechanical stage
NA1.25 Abbe Condenser with iris diaphragm & filters
Rack and pinion adjustment condenser
Manufactured under ISO 9001 Quality Control Standard

Specifications:

Eyepieces: widefield, WF10X (WF16X optional)
Objectives: Achromatic DIN 4X, 10X, 40X(S), 100X(S, Oil)
Head: 30 degree inclined 360 degree swiveling binocular
Interpupillary distance: 2-1/8" - 3-1/8" (53mm - 77mm)
Adjustable ocular diopter
Nosepiece: revolving quadruple
Mechanical Stage: 3-D double layer
- Size: 4-5/8" x 5" (115mm x 125mm)
- Travel Range (X-Y): 2-13/16" x 1-3/16" (70mm x 30mm)
Condenser: NA1.25 Abbe condenser with iris diaphragm
Illumination: LED light, transmitted, intensity adjustable, GS and CE approved
Focusing: coaxial coarse & fine knobs on both sides
Power Supply: 100-240VAC, 50/60Hz, AC/DC adapter (UL approved) Included
Dimension: 11" x 7" x 13-3/4" (280mm x 178mm x 350mm)

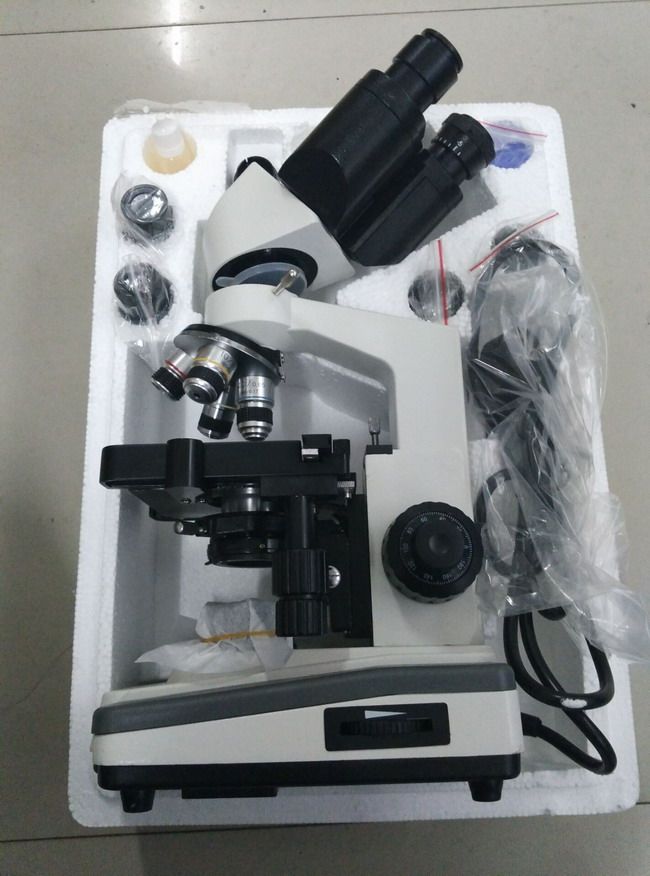

Packing List:

One Siedentopf Binocular Microscope Head
One Microscope Body Frame with Double Layer Mechanical Stage and LED Illumination
Four DIN Standard Objectives, 4X, 10X, 40X and 100X
One Pair of Widefield 10X Eyepieces
One Blue Color Filter
One Dust Cover
Sample Immersion Oil
User's Manual
Net weight: 11 lbs
Shipping weight: 13 lbs


Add to Cart:

  • Model: XSP-200
  • Shipping Weight: 3kg
  • 49 Units in Stock
