7 Inch LCD OCA Vacuum Laminating Machine

$480.00
PayPal Acceptance Mark

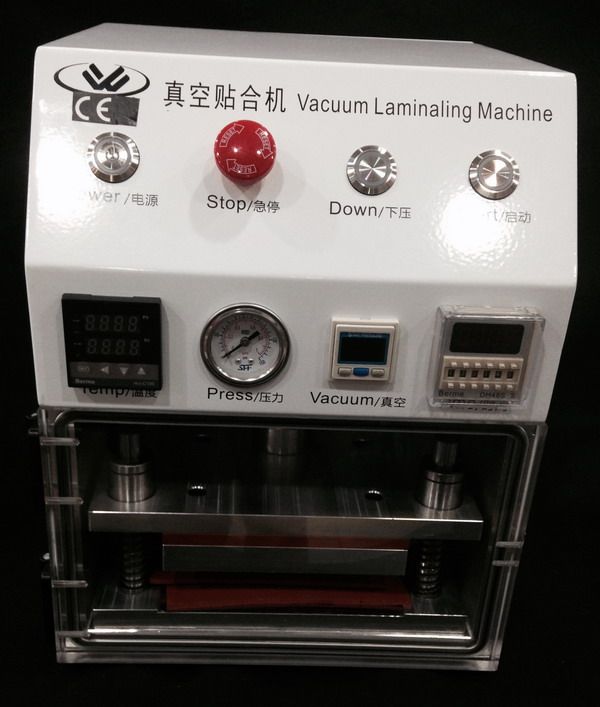

7 Inch LCD OCA Vacuum Laminating Machine

This Latest Faster vacuum laminating machine, suitable for capacitive touch screen Cover plate (Cover Lens) and functional Glass Sensor (Glass) of OCA laminating process; Apply to the Touch screen (Touch Panel) and liquid crystal module (LCD Panel) of the OCA laminating process, at the same time can also be applied to other areas of membrane, glass to glass (glass) of hard in hard OCA laminating process.

Features:

* No mold;
* Equipment imported from Japan SMC pneumatic components;
* A key to start, easy to operate;
* Japan thermostat, the temperature can be accurate to ± 1 °C;
* Japanese precision pressure regulator, pressure ± 0.001Mpa;
* Flat lamination way, the overall lamination, smooth uniform pressure, no stress concentration, no color pattern after lamination, no indentation, LCD chaos color, smaller convenient transportation.
* This Machine need a vacuum pump and an air compressor to work with.

Technical Parameters:

Device Power: AC220V 400W power supply optional AC110V, AC220V, AC380V
Working pressure: 0.4-0.6 Mpa
Work environment: 20-23 °C, clean, dust-free
Fitting way: flat lamination
Productivity: 40s/1pcs
Heating mode: heating thermostat
Adapt Size: 7" (according to customer requirements)
Laminate: 3 LCDs a time
Equipment size: 360 x 270 x 290 mm
Weight: about 26 kg

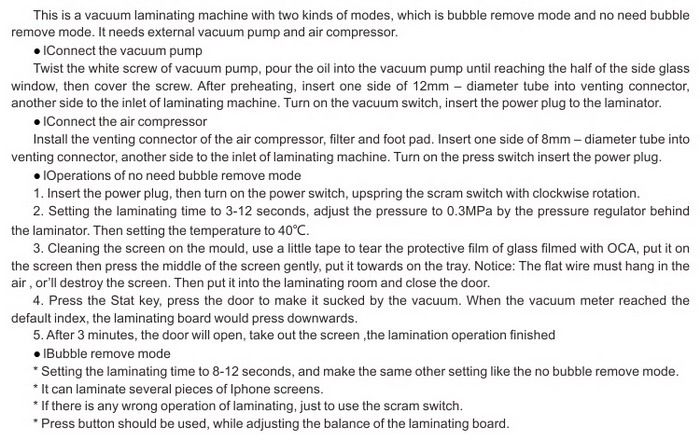

How to use it:


Add to Cart:

  • Model: DS207
  • Shipping Weight: 27kg
  • 47 Units in Stock
