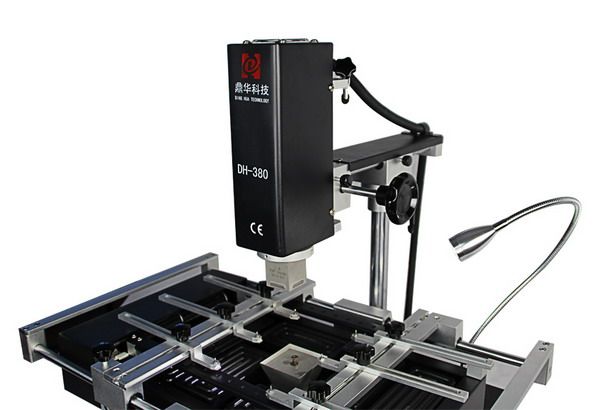

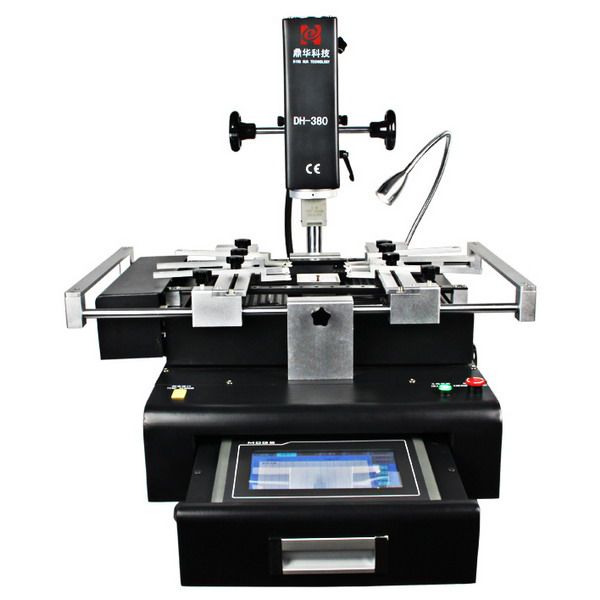

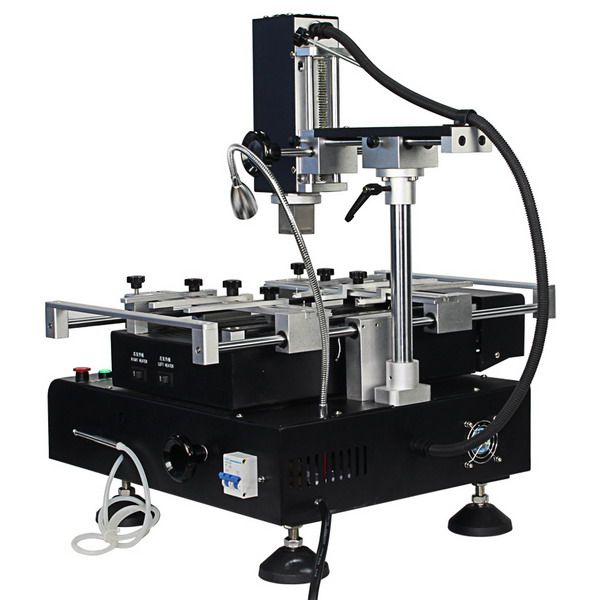

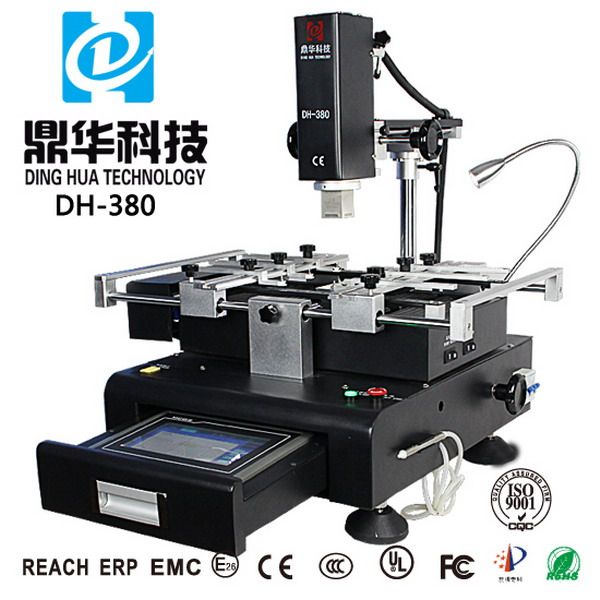

DH-380 BGA Rework Station

$820.00
PayPal Acceptance Mark

SPECIFICETION:

Total Power

4400W

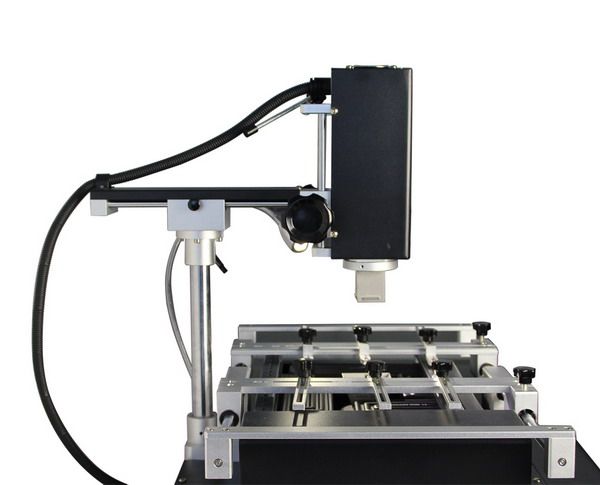

Top heater

800W

Bottom heater

Second heater 1200W, IR preheating           2400w

Power supply

AC220V±10     50/60Hz

Dimensions

L570*W550*H570mm

Positioning

V-groove, PCB support can be adjusted in any direction with external universal fixture

Temperature control

K Sensor, Closed loop

Temp accuracy

±2

PCB size

Min: 20mm*20mm Max: 320mm*375mm

BGA chip

2*2~80*80mm

Minimum chip spacing

0.15mm

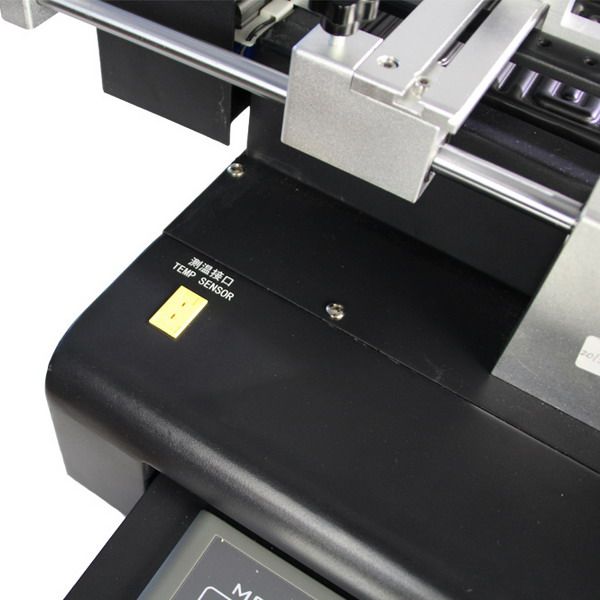

External Temperature Sensor

1(optional)

Net weight

30 KG

DH-380 Main functions:

Three independent heaters all can set 8 segments heating, cooling and constant temperature, save up to ten temperature profiles. IR preheat area can be controlled according to PCB size


ARM control system and laser positioning
, repairing all kinds of computer motherboards and PC.

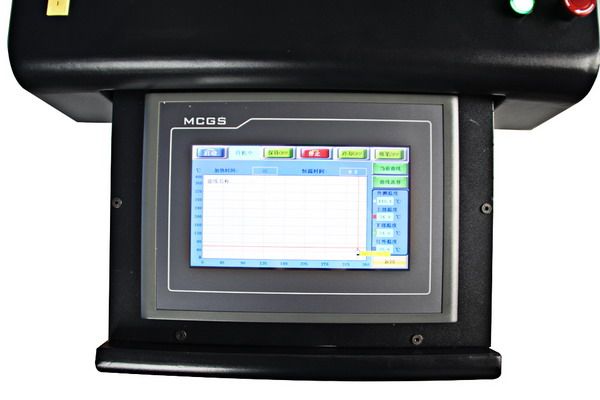

Embedded Industrial PC, high definition drawer style touch screen interface, PLC control, and instant profile analysis function. Real-time settings and actual temperature profile display can be used to analyzed and correct parameters if necessary.



K-type close circuit control and automatic temperature adjustment system, with PLC and temperature module to enable precision temperature control of ±2 degC. External temperature sensor enables temperature monitoring and accurate analysis of real time temperature profile.

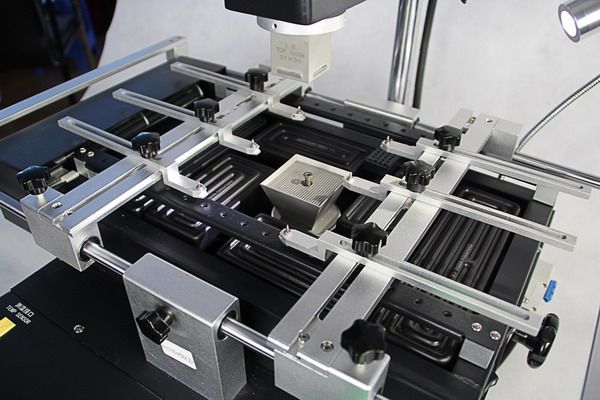

V-groove PCB support for rapid, convenience and accurate positioning that fits for all kinds of PCB board.



Flexible and convenient removable fixture



Various sizes of BGA nozzles, which can be adjusted 360 degree for easy installation and replacement;



High powerful cross-flow fan and protect cover to enable fast cooling of PCB board and prevent it from deformation.



Vacuum sucker and vacuum pen



Voice "early warning" function. 5-10 seconds before the completion of uninstalling or welding, voice reminder / warning to get the workers prepared. Cooling system will start after vertical wind stopped heating. When the temperature drops to room temperature, the cooling process will stop, so that the machine will not age after heated up.



CE certification, with emergency switch and automatic power-off protection device when emergency happens.




















Add to Cart:

  • Model: DH-380
  • Shipping Weight: 45kg
  • 19 Units in Stock

This product was added to our catalog on Monday 26 August, 2013.
